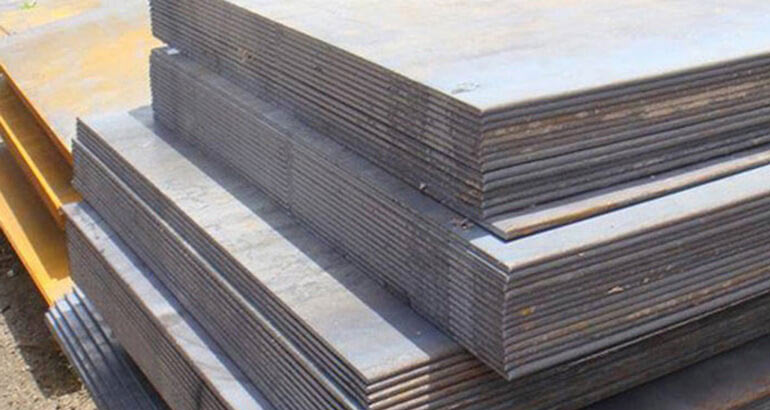

ASME SA 387 GR 5 Alloy Plates
AASME SA387 Grade 5 Class 2 a superb chrome molybdenum alloy steel plate proposed particularly for utilization in weldable carbon steel weight vessels at hoisted temperatures. Similarly as with all ASME pressure vessel steels plate to Sa387 is delivered in adjustment which plots the testing and retesting systems and techniques, permissible varieties in measurements and weight, quality and repair of imperfections, stamping, stacking, and requesting data. Included molybdenum gives the material more prominent temperature rigidity and the chromium gives enhanced consumption safety.
We supply ASME SA387 Grade 5 Class 2 plates from our own particular stockholding in Kalamboli / Taloja or straightforwardly from the plant. All plates accompany factory test affirmation and individual stampings.
ASME SA 387 Gr 5 Alloy Plate, ASME SA 387 Gr 5 Alloy Plate Manufacturers, ASME SA 387 Gr 5 Alloy Plate Manufacturers in India, ASME SA 387 Gr 5 Alloy Plate Suppliers,ASME SA 387 Gr 5 Alloy Plate Stockists, ASME SA 387 Gr 5 Alloy Plate Exporters,ASME SA 387 Gr 5 Alloy Plate Traders,ASME SA 387 Gr 5 Alloy Plate Dealers, ASME SA 387 Gr 5 Alloy Plate Importers, Authorised Distributors Of ASME SA 387 Gr 5 Alloy Plate, Authorised Exporters Of ASME SA 387 Gr 5 Alloy Plate, Authorised Traders Of ASME SA 387 Gr 5 Alloy Plate, Authorised Importers Of ASME SA 387 Gr 5 Alloy Plate, Autorised Suppliers Of ASME SA 387 Gr 5 Alloy Plate. ASME SA387 Alloy Steel Grade 5 Class Plate, SA 387 Gr 5 Cl.2 Plates, SA387 Gr.5 Cl 1 Alloy Steel Plates Distributor, ASME SA387 Alloy Steel Gr 5 Class 2 Plates, SA387 Chromium-molybdenum Steel Gr 5 Class 1 Steel Plates.
ASME SA 387 Gr 5 Alloy Steel Plate Suppliers In Mumbai, ASME SA 387 Gr 5 Alloy Steel Plate Manufacturers in Mumbai, ASME SA 387 Gr 5 Alloy Steel Plate Stockists In Mumbai, ASME SA 387 Gr 5 Alloy Steel Plate Exporters In Mumbai,ASME SA 387 Gr 5 Alloy Steel Plate Traders In Mumbai ,ASME SA 387 Gr 5 Alloy Steel Plate Dealers In Mumbai, ASME SA 387 Gr 5 Alloy Steel Plate Importers In Mumbai, Authorised Distributors Of ASME SA 387 Gr 5 Alloy Steel Plate In Mumbai, Authorised Exporters Of ASME SA 387 Gr 5 Alloy Steel Plate In Mumbai,authorised Traders Of ASME SA 387 Gr 5 Alloy Steel Plate In Mumbai, Authorised Importers Of ASME SA 387 Gr 5 Alloy Steel Plate In Mumbai,autorised Suppliers Of ASME SA 387 Gr 5 Alloy Steel Plate In Mumbai. SA387 Gr.5 Cl 2 Steel Plates, SA387 Grade 5 Cl 1 Alloy Steel Plates Stockist In Mumbai, India. A387 Grade 5 Class 2 Hr Plates, ASME SA387 Gr 5 Crmo Cl 1 Boiler Quality Plates Exporter, SA 387 Cr-mo Gr.5 Cl 2 Pressure Vessel Plates
EQUIVALENTS
| BS | EN | ASTM/ASME | DIN |
|---|---|---|---|
| ,. | ,. | SA387-5-2 | ,. |
CHROMIUM & MOLYBDENUM CONTENT ASME SPECIFICATION
| Designation | Nominal Chromium Content (%) |
Nominal Molybdenum Content (%) |
|---|---|---|
| SA387 Grade 5 | 5.00% | 0.50% |
CHEMICAL REQUIREMENTS
| Element | Chemical Composition (%) | |
|---|---|---|
| SA 387 Grade 5 | ||
| Carbon: | Heat Analysis: | 0.15 max |
| Product Analysis: | 0.15 max | |
| Manganese: | Heat Analysis: | 0.30 - 0.60 |
| Product Analysis: | 0.25 - 0.66 | |
| Phosphorus: | Heat Analysis: | 0.035 |
| Product Analysis: | 0.035 | |
| Sulphur (max): | Heat Analysis: | 0.030 |
| Product Analysis: | 0.030 | |
| Silicon: | Heat Analysis: | 0.50 max |
| Product Analysis: | 0.55 max | |
| Chromium: | Heat Analysis: | 4.00 - 6.00 |
| Product Analysis: | 3.90 - 6.10 | |
| Molybdenum: | Heat Analysis: | 0.45 - 0.65 |
| Product Analysis: | 0.40 - 0.70 |
TENSILE REQUIREMENTS FOR CLASS 2 PLATES
| Designation: | Requirement: | Grade 5 |
|---|---|---|
| SA387 Grade 5 | Tensile strength, ksi [MPA] | 75 to 100 [515 to 690] |
| Yield strength, min, ksi [MPa]/(0.2% offset) | 45 [310] | |
| Elongation in 8 in. [200mm], min % | ,. | |
| Elongation in 2 in. [50mm], min, % | 18 | |
| Reduction of area, min % | 45 (measured on round specimen) 40 (measured on flat specimen) |
Tension Test Requirements: The material shall be tested using a test specimen and will confirm to the tensile requirements as outlined in above table.
Other requirements: The following requirements and testing procedures (which are not mandatory) are considered suitable for Chrome Molybdenum steel:
Vacuum treatment
Product Analysis
Additional Tension Test
Charpy V-Notch Impact Test
Drop Weight Test
High Temperature Tension Test
Ultrasonic Examination
Magnetic Particle Examination
