Stainless Steel

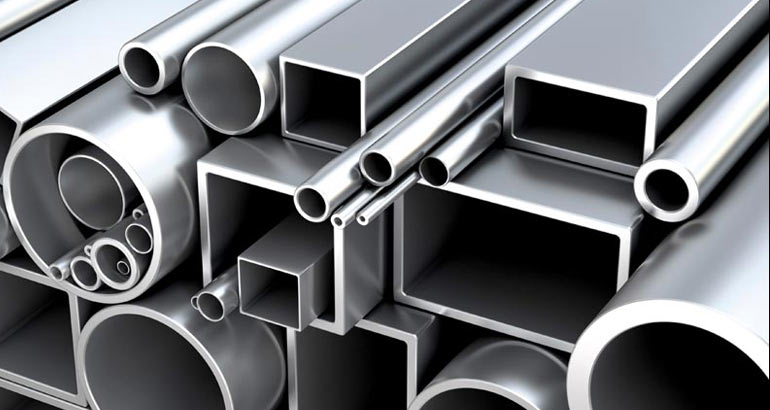

Stainless steel is a type of steel that contains chromium, which makes it highly resistant to rust and corrosion. Stainless steel is commonly used in many industries, including construction, automotive, and aerospace, due to its durability and aesthetic qualities. Here is a brief description of stainless steel pipe, tube, flange, fastener, fittings, and round bar.
Specifications :
| ASTM | A312, A376,A358, A269, A249, A403, A182, A351 |
| ASME | SA312, SA376, Pressure SA358, SA269, SA249,SA403, SA182, SA351 |
Chemical Compositions :
| Grade | C | Cr | Ni | Mo | Others |
|---|---|---|---|---|---|
| 304 | 0.08 | 18.0~ 20.0 | 8.00~ 10.50 | - | - |
| 304L | ~0.030 | 18.0~ 20.0 | 9.00~ 13.00 | - | - |
| 310S | ~0.08 | 24.0~ 26.0 | 19.0~ 22.0 | - | - |
| 316 | ~0.08 | 16.0~ 18.0 | 10.0~ 14.0 | 2.00~ 3.00 | - |
| 316L | ~0.08 | 16.0~ 18.0 | 12.0~ 15.0 | 2.00~ 3.00 | - |
| 316Ti | 0.08 | 16.0~ 18.0 | 10.0~ 14.0 | 2.00~ 3.00 | Ti 5xC% ~ |
| 317L | 0.03 | 18.0~ 22.0 | 11.0~ 15.0 | 3.00~ 4.00 | - |
| 321 | ~0.08 | 17.0~ 19.0 | 9.00~ 13.0 | - | Ti 5xC%~ |
| 347 | 0.08 | 17.0~ 19.0 | 9.00~ 13.0 | - | Nb10xC%~ |
Mechanical Properties :
| Grade | Yield Strength (0.2%) (N/mm² |
Tensile Strength (N/mm²) |
Elongation (%) | Hardness (Hv) |
|---|---|---|---|---|
| 304 | 205~ | 520~ | 40~ | ~200 |
| 304L | 175~ | 480~ | 40~ | ~200 |
| 310S | 205~ | 520~ | 40~ | ~200 |
| 316 | 205~ | 520~ | 40~ | ~200 |
| 316L | 175~ | 480~ | 40~ | ~200 |
| 316Ti | 205~ | 520~ | 40~ | ~200 |
| 317L | 175~ | 480~ | 40~ | ~200 |
| 321 | 205~ | 520~ | 40~ | ~200 |
| 347 | 205~ | 520~ | 40~ | ~200 |
Physical Properties :
| Grade | Specific Heat J/g °C | Specific Gravity | Thermal Expansion Coefficient W/m·°C (20-100°C) |
Thermal Conductivity W/m·°C (100°C) |
|---|---|---|---|---|
| 304 | 0.50 | 7.93 | 17.3 | 16.3 |
| 304L | 0.50 | 7.93 | 17.3 | 16.3 |
| 310S | 0.50 | 7.98 | 15.9 | 14.2 |
| 316 | 0.50 | 7.98 | 15.9 | 16.3 |
| 316L | 0.50 | 7.98 | 15.9 | 16.3 |
| 316Ti | 0.50 | 7.98 | 15.9 | 16.3 |
| 317L | 0.486 | 7.98 | 16.5 | 14.4 |
| 321 | 0.50 | 7.93 | 16.7 | 16.1 |
| 347 | 0.50 | 7.98 | 16.7 | 16.1 |
