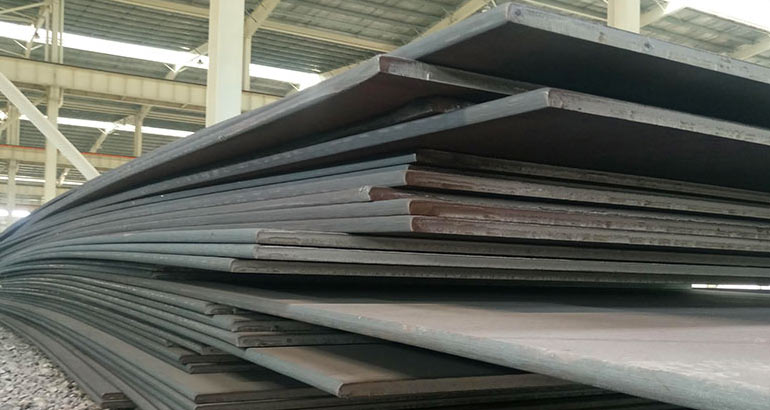

ASME SA 387 GR 22 Alloy Plates
We supply ASME Sa387 Grade 22 Class 2 plates to worldwide fabricators serving the oil, gas and petrochemical industry.
These commercial enterprises oblige a pressure vessel grade which functions admirably in lifted temperatures and our material fills this need well. Furthermore with great consumption and oxidation resistance, Sa387 Grade 22 Class 2 plates are a decent alternative for sharp gas situations as well.
Vandan Steel & Engg. co. stock Sa387 Grade 22 carbon combination plates and have the capacity dispatch around the world.
ASME SA 387 Gr 22 Alloy Plate, ASME SA 387 Gr 22 Alloy Plate Manufacturers, ASME SA 387 Gr 22 Alloy Plate Manufacturers in India, ASME SA 387 Gr 22 Alloy Plate Suppliers,ASME SA 387 Gr 22 Alloy Plate Stockists, ASME SA 387 Gr 22 Alloy Plate Exporters,ASME SA 387 Gr 22 Alloy Plate Traders,ASME SA 387 Gr 22 Alloy Plate Dealers, ASME SA 387 Gr 22 Alloy Plate Importers, Authorised Distributors Of ASME SA 387 Gr 22 Alloy Plate, Authorised Exporters Of ASME SA 387 Gr 22 Alloy Plate,authorised Traders Of ASME SA 387 Gr 22 Alloy Plate, Authorised Importers Of ASME SA 387 Gr 22 Alloy Plate,autorised Suppliers Of ASME SA 387 Gr 22 Alloy Plate. Sa387 Gr.22 Cl 2 Alloy Steel Plates Distributor, Asme Sa387 Alloy Steel Gr 22 Class 2 Plates, Sa387 Chromium-molybdenum Steel Gr 22 Class 2 Steel Plates, Asme Sa387 Alloy Steel Grade 22 Class Plate, Sa 387 Gr 22 Cl.2 Plates, Sa387 Gr.22 Cl 2 Steel Plates
ASME SA 387 Grade 22 Alloy Plate Suppliers In Mumbai,ASME SA 387 Grade 22 Alloy Plate Stockists In Mumbai, ASME SA 387 Grade 22 Alloy Plate Exporters In Mumbai,ASME SA 387 Grade 22 Alloy Plate Traders In Mumbai ,ASME SA 387 Grade 22 Alloy Plate Dealers In Mumbai, ASME SA 387 Grade 22 Alloy Plate Importers In Mumbai, Authorised Distributors Of ASME SA 387 Grade 22 Alloy Plate In Mumbai, Authorised Exporters Of ASME SA 387 Grade 22 Alloy Plate In Mumbai,authorised Traders Of ASME SA 387 Grade 22 Alloy Plate In Mumbai, Authorised Importers Of ASME SA 387 Grade 22 Alloy Plate In Mumbai,autorised Suppliers Of ASME SA 387 Grade 22 Alloy Plate In Mumbai. Sa387 Grade 22 Cl 2 Alloy Steel Plates Stockist In Mumbai, India. sa 387 Cr-mo Gr.22 Cl 2 Pressure Vessel Plates, Asme Sa387 Grade 22 Cl 2 Low Alloy Steel Plate, Sa 387 Chrome Moly Class 2 Hot Rolled Steel Plates Dealer
EQUIVALENTS
| BS | EN | ASTM/ASME | DIN |
|---|---|---|---|
| 622-515B | 10 CRMO910 | SA387-22-2 | 10 CRMO910 |
SPECIFICATION CHROMIUM & MOLYBDENUM CONTENT ASME SPECIFICATION
| Designation | Nominal Chromium Content (%) |
Nominal Molybdenum Content (%) |
|---|---|---|
| SA387 Grade 22 | 2.25% | 1.00% |
CHEMICAL REQUIREMENTS
| Element | Chemical Composition (%) | |
|---|---|---|
| SA 387 Grade 22 | ||
| Carbon: | Heat Analysis: | 0.05 - 0.15 |
| Product Analysis: | 0.04 - 0.15 | |
| Manganese: | Heat Analysis: | 0.30 - 0.60 |
| Product Analysis: | 0.25 - 0.66 | |
| Phosphorus: | Heat Analysis: | 0.035 |
| Product Analysis: | 0.035 | |
| Sulphur (max): | Heat Analysis: | 0.035 |
| Product Analysis: | 0.035 | |
| Silicon: | Heat Analysis: | 0.50 max |
| Product Analysis: | 0.50 max | |
| Chromium: | Heat Analysis: | 2.00 - 2.50 |
| Product Analysis: | 1.88 - 2.62 | |
| Molybdenum: | Heat Analysis: | 0.90 - 1.10 |
| Product Analysis: | 0.85 - 1.15 |
TENSILE REQUIREMENTS FOR CLASS 2 PLATES
| Designation: | Requirement: | Grade 22 |
|---|---|---|
| SA387 Grade 22 | Tensile strength, ksi [MPA] | 75 to 100 [515 to 690] |
| Yield strength, min, ksi [MPa]/(0.2% offset) | 45 [310] | |
| Elongation in 8 in. [200mm], min % | ,. | |
| Elongation in 2 in. [50mm], min, % | 18 | |
| Reduction of area, min % | 45 (measured on round specimen) 40 (measured on flat specimen) |
Tension Test Requirements: The material shall be tested using a test specimen and will confirm to the tensile requirements as outlined in above table.
Other requirements: The following requirements and testing procedures (which are not mandatory) are considered suitable for Chrome Molybdenum steel:
Vacuum treatment
Product Analysis
Additional Tension Test
Charpy V-Notch Impact Test
Drop Weight Test
High Temperature Tension Test
Ultrasonic Examination
Magnetic Particle Examination
